Forman Equation

The Forman equation accounts for the stress ratio, and can be written in the following form

equation89

where tex2html_wrap_inline1987 is a critical level for the Stress Intensity K, corresponding to unstable fracture. This is called the fracture toughness. tex2html_wrap_inline1991 is a level below which no damage occurs; for some materials this is zero, but for many ferrous materials it is positive.

  figure95

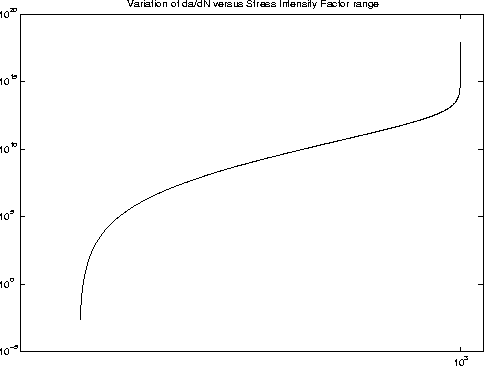

Figure: Graph of tex2html_wrap_inline1963 versus tex2html_wrap_inline1995 . Forman Equation.

The graph in Figure gif of this function shows that there exist two limits such that

displaymath1983

and

displaymath1984

It is clear from this that there is a lower limit to tex2html_wrap_inline1963 , below which no crack growth takes place, and an upper limit, around which growth is explosive.

Finally, with regard to the Forman Equation, it has been shown to give good results for crack growth in aluminium alloys and steels, but not in many other materials.

Other empirical models appear in the literature; for example [44] via the ``Famous Robder Law'' demonstrate, partly in jest, how common practice it is to propose new models to fit data within this field. There are very many adaptations to well known laws which are not mentioned here.
