Voltages in the Hodgkin-Huxley model.
Here are some graphs related to the Hodgkin-Huxley model; here an electrode current is switched on at 0.01 and off again at 0.04. For the other parameters you can look in Simulation.cpp. The rest of the code is also available: HH.tar.

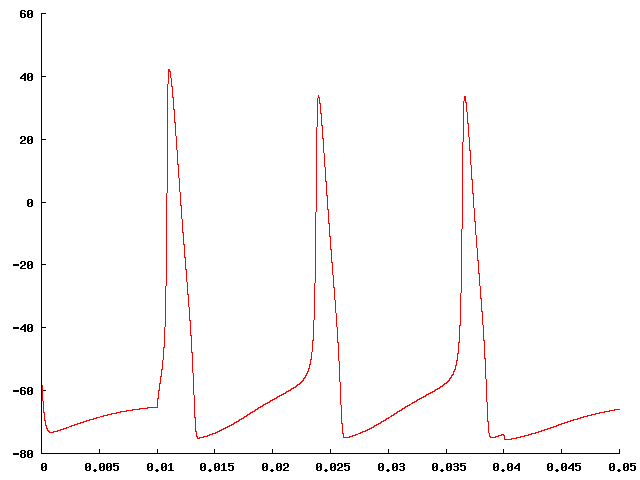

A graph of the voltage.

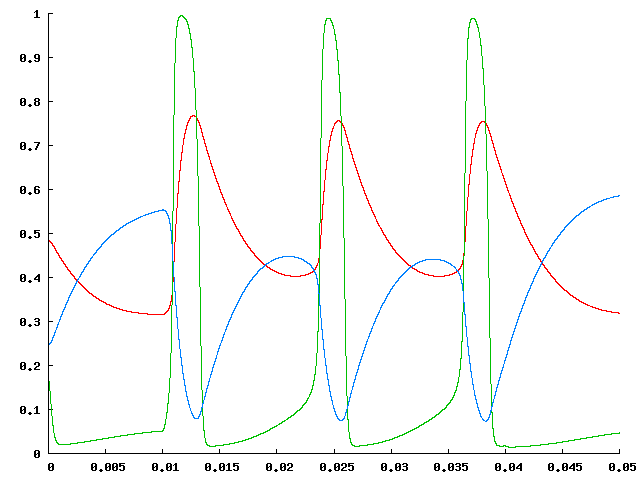

A graph of the sub-gating probabilities, n is red, m green and h blue:

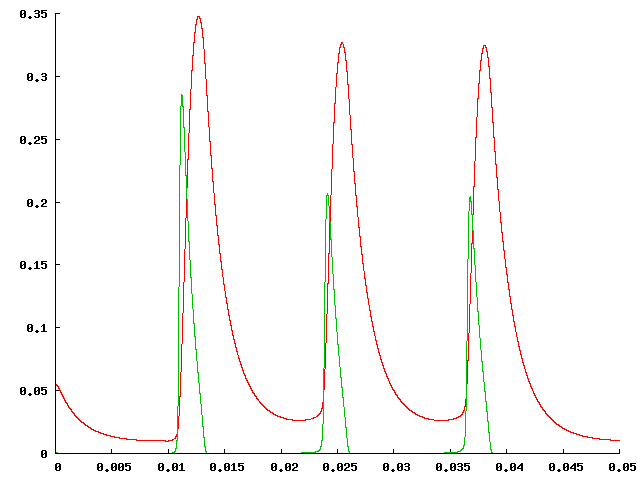

A graph of the gating probabilities: n^4 is red and m^3h is green.

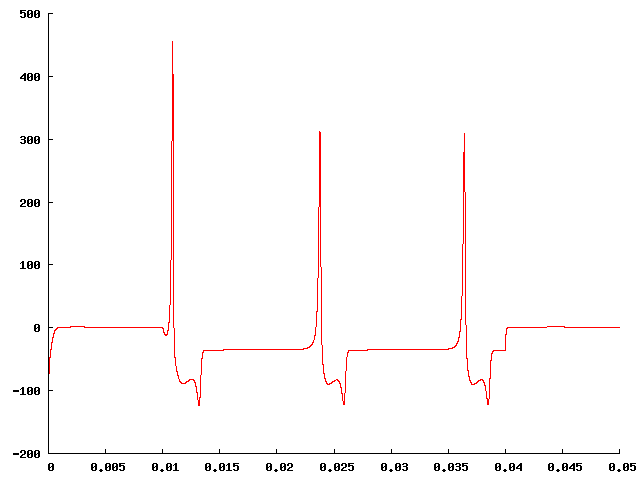

A graph of the membrane current.
